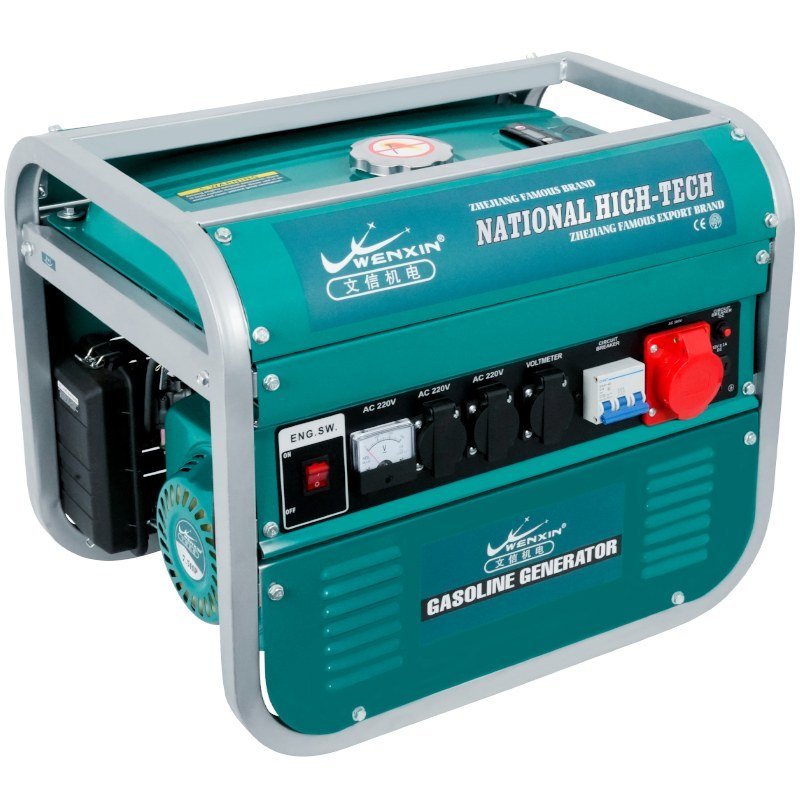

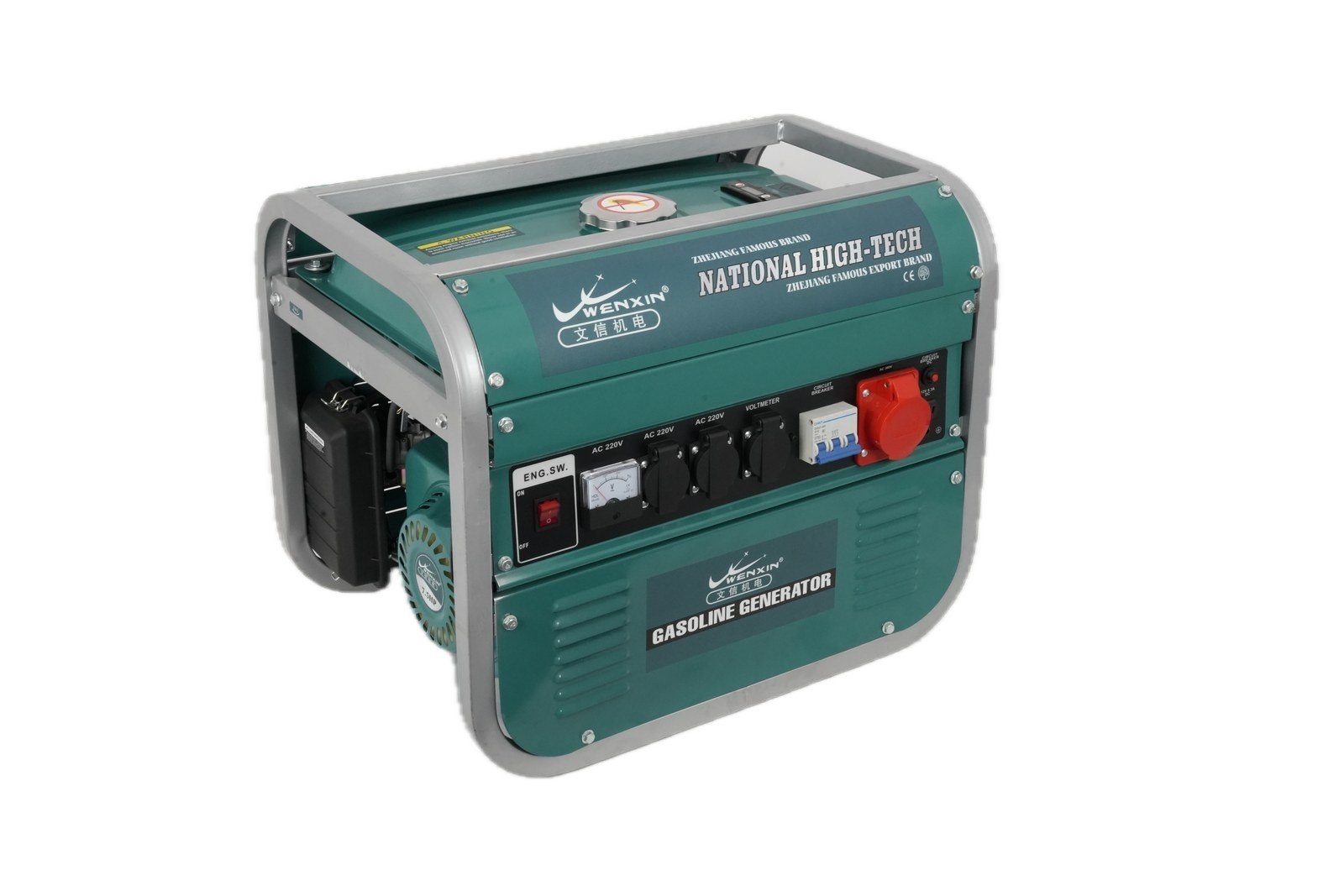

Enclosed Type Gasoline Generator 1.5-3.2kw

Enclosed type gasoline generator 1.5-3.2kw housing the compact platform in full-cover bodywork. Eight rated steps, 196–223 cc engines, 15 L tank, 110V/220V output at 50Hz/60Hz.

OEM/ODMLogo / Color / Packaging
Stable Supply3000+ Daily Output
Fast DeliveryWithin 30 Days
Global ServiceExported to 60+ Countries
CERoHSEPA
Custom Certification SupportBased on market requirements
Model
Engine Model168F
Rated Power1.5 kW
Voltage110V/220V
Frequency50Hz/60Hz
Displacement196 cc
Fuel Tank15 L
Run Time14 h
Oil Capacity0.6 L
Packing Size610×440×490 mm
Engine Model168F
Rated Power1.8 kW
Voltage110V/220V
Frequency50Hz/60Hz
Displacement196 cc
Fuel Tank15 L
Run Time13 h
Oil Capacity0.6 L
Packing Size610×440×490 mm
Engine Model168F
Rated Power2 kW
Voltage110V/220V/380V
Frequency50Hz/60Hz
Displacement196 cc
Fuel Tank15 L
Run Time12.5 h
Oil Capacity0.6 L
Packing Size610×440×490 mm
Engine Model168F
Rated Power2.2 kW
Voltage110V/220V/380V
Frequency50Hz/60Hz
Displacement196 cc
Fuel Tank15 L
Run Time12 h
Oil Capacity0.6 L
Packing Size610×440×490 mm
Engine Model168F
Rated Power2.4 kW
Voltage110V/220V/380V
Frequency50Hz/60Hz
Displacement196 cc
Fuel Tank15 L
Run Time11 h
Oil Capacity0.6 L
Packing Size610×440×490 mm
Engine Model168F
Rated Power2.5 kW
Voltage110V/220V/380V
Frequency50Hz/60Hz
Displacement196 cc
Fuel Tank15 L
Run Time10.5 h
Oil Capacity0.6 L
Packing Size610×440×490 mm
Engine Model170F
Rated Power2.8 kW
Voltage110V/220V/380V
Frequency50Hz/60Hz
Displacement212 cc
Fuel Tank15 L
Run Time9 h
Oil Capacity0.6 L
Packing Size610×440×490 mm
Engine Model170F-1
Rated Power3.2 kW
Voltage110V/220V/380V
Frequency50Hz/60Hz
Displacement223 cc
Fuel Tank15 L
Run Time7.5 h
Oil Capacity0.6 L
Packing Size610×440×490 mm

Specifications are for reference only and may vary by configuration or destination market. Contact us for the full data sheet.

Enclosed Type Gasoline Generator 1.5-3.2kw Overview

The enclosed type gasoline generator 1.5-3.2kw is the only fully enclosed model in WENXIN’s compact gasoline band — body panels cover the engine and alternator rather than leaving an open frame. Inside, it runs the same proven spread: eight rated steps from 1.5 to 3.2 kW on 196–223 cc engines with a 15 L tank, built to order in 50Hz or 60Hz with 110V/220V output.

OEM & ODM Service

WENXIN has manufactured agricultural and power machinery since 2004, with 1,500+ staff across three production bases covering more than 205,000 m². We support OEM and ODM orders including custom logo, colour, labelling and carton design, and export to over 60 countries. Contact our team with your target market and estimated quantity for factory pricing and lead times.

What is this gasoline generator used for?

This gasoline generator is suitable for home backup power, farm use, outdoor work, small shops, construction sites, and emergency power supply.

Can I customize the generator with my own logo and color?

Yes. We support OEM/ODM customization, including logo, color, control panel, packaging, and other requirements based on order quantity.

What is the production lead time for bulk orders?

The standard production lead time is usually within 30 days after deposit confirmation. The final delivery time depends on order quantity and customization requirements.

What certificates are available for gasoline generators?

Certificates such as CE, RoHS, and EPA can be supported for gasoline generators. Certificate availability may vary by model and destination market.

How can I choose the right generator model?

You can choose the generator based on rated power, fuel type, application, voltage, starting method, and usage environment. Contact us with your power requirements, and our sales team will recommend a suitable model.

01Material InspectionIncoming raw materials and components are inspected against our quality standards before entering production.
02Precision MachiningCore parts are machined in-house on CNC equipment to keep tolerances and performance consistent batch after batch.
03Assembly LineUnits are assembled on dedicated production lines by trained operators, with in-process checks at each station.
04Testing & Running-inEvery unit goes through functional testing and running-in before it is approved for packing.
05Packing & LoadingProducts are packed to export standards, with OEM logo, color and carton design available on request.

Factory audits and video inspections are welcome. Contact us to arrange a visit or a live production walkthrough.
