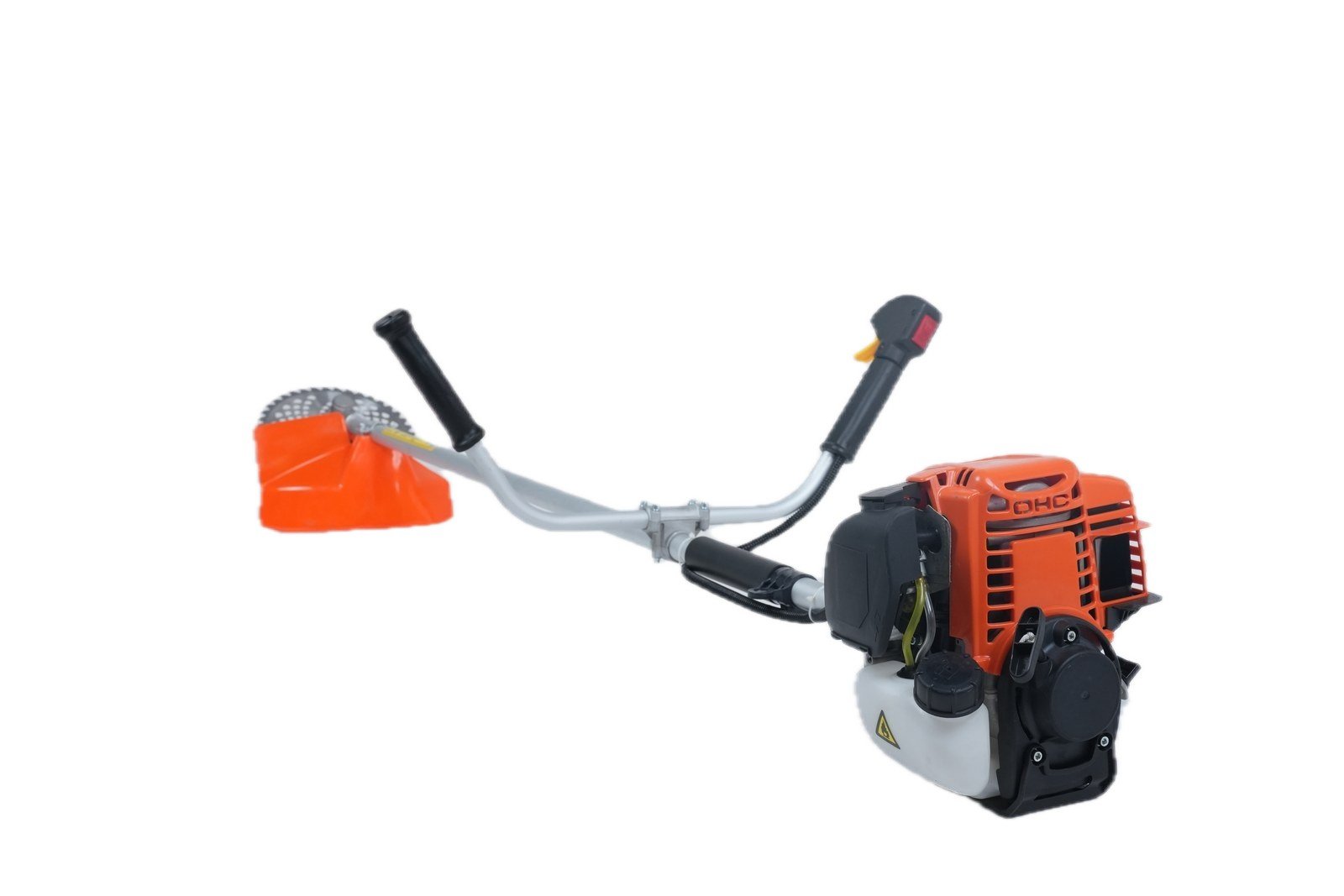

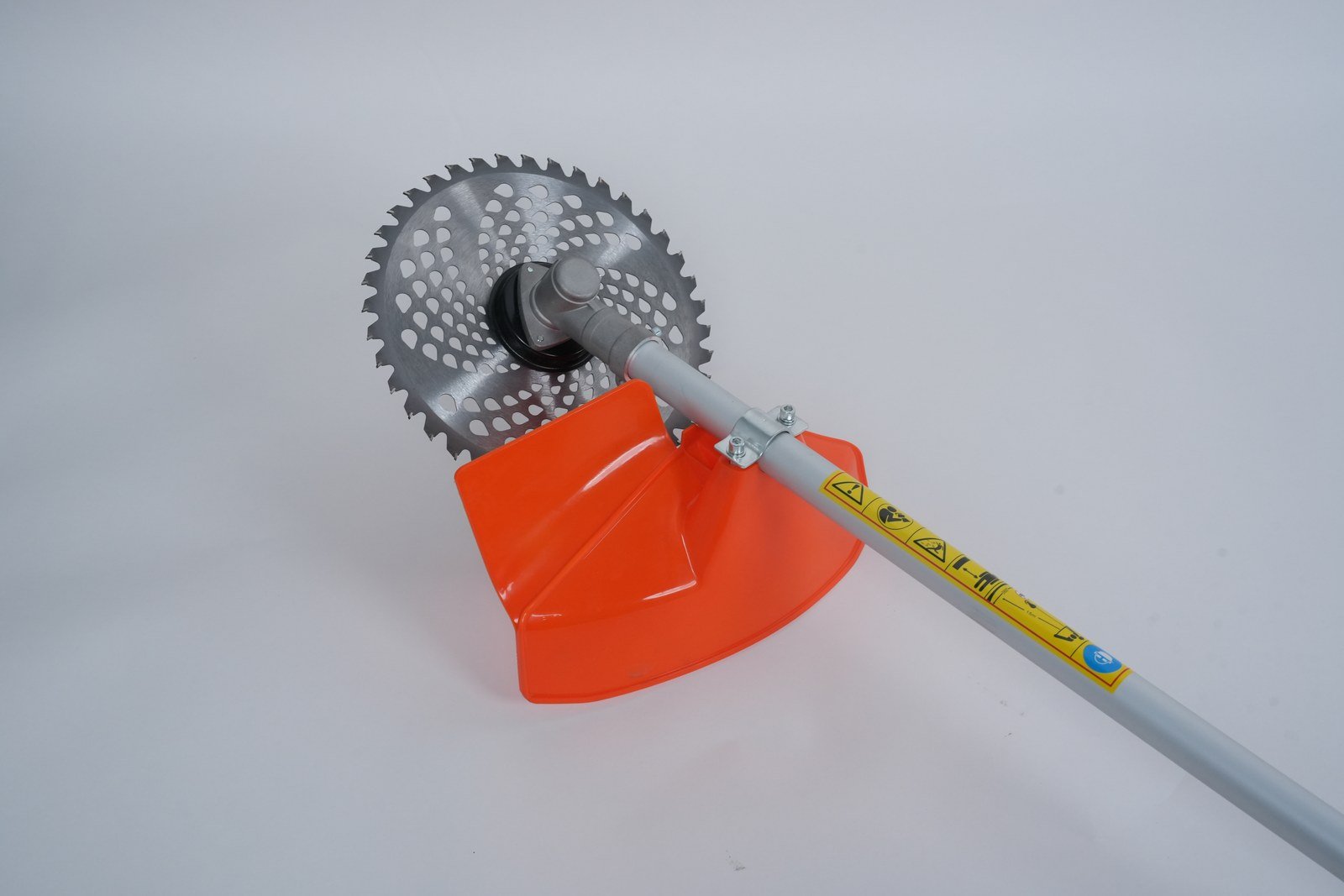

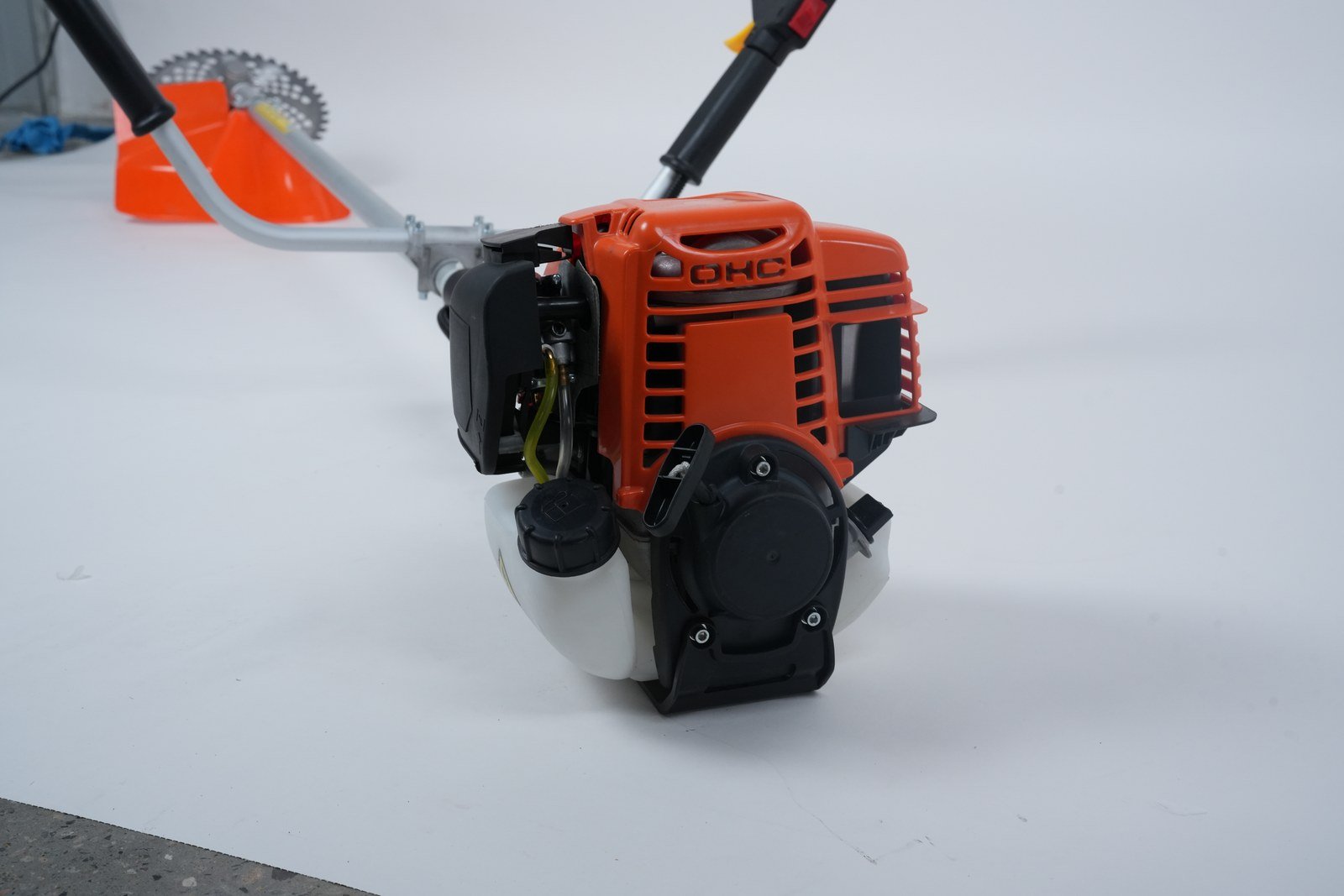

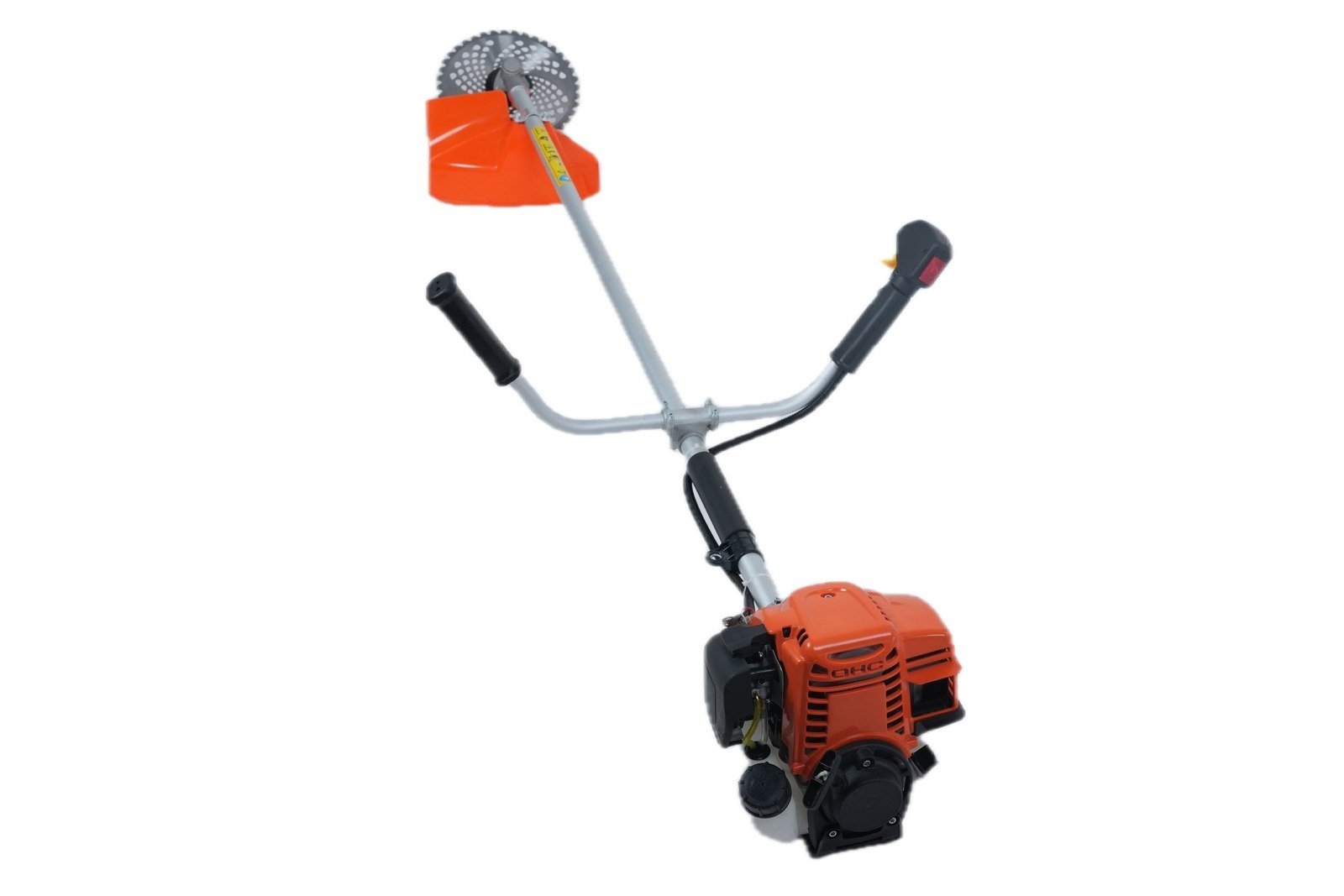

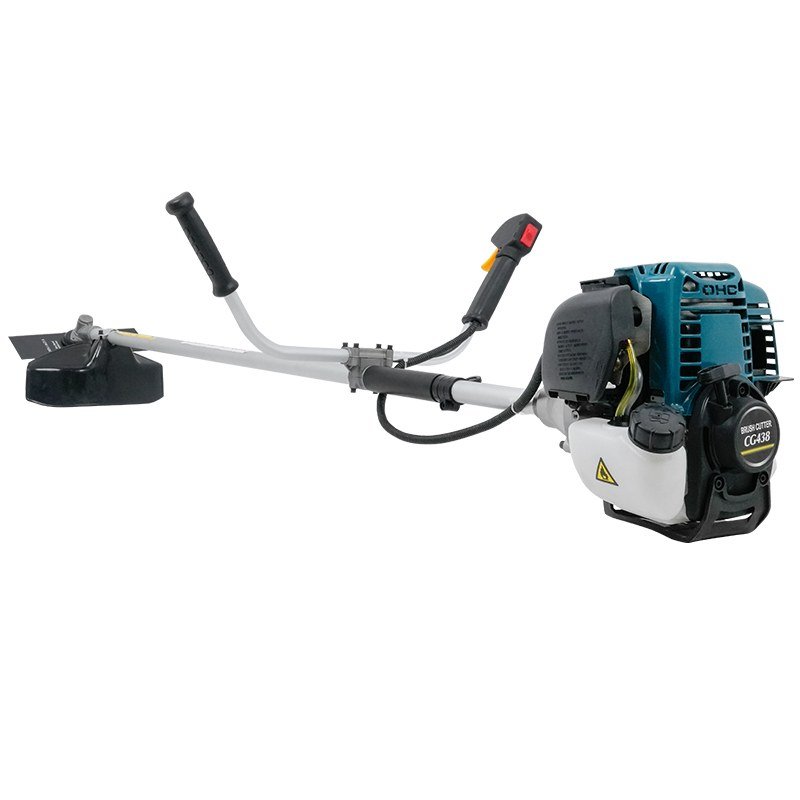

Side-Mounted Brush Cutter

Side-mounted brush cutter in eight builds from CG260 (0.75 kW, 25.6 cc) to CG820 (2.6 kW, 82 cc), two-stroke and four-stroke, on the classic straight-shaft layout.

OEM/ODMLogo / Color / Packaging
Stable Supply3000+ Daily Output
Fast DeliveryWithin 30 Days
Global ServiceExported to 60+ Countries
CE
Custom Certification SupportBased on market requirements
Model
Engine ModelTU26
Rated Power0.75 kW
Displacement25.6 cc
Stroke2-stroke
Drive TypeSide harness, straight shaft
Packing Size1650×100×100 mm (shaft)
Engine Model1E36F-2
Rated Power0.85 kW
Displacement32.6 cc
Stroke2-stroke
Drive TypeSide harness, straight shaft
Packing Size1650×100×100 mm (shaft)
Engine Model1E40F-5
Rated Power1.25 kW
Displacement42.7 cc
Stroke2-stroke
Drive TypeSide harness, straight shaft
Packing Size1650×100×100 mm (shaft)
Engine Model1E44F-5J
Rated Power1.4 kW
Displacement51.7 cc
Stroke2-stroke
Drive TypeSide harness, straight shaft
Packing Size1650×100×100 mm (shaft)
Engine Model1E48F
Rated Power2.2 kW
Displacement63.3 cc
Stroke2-stroke
Drive TypeSide harness, straight shaft
Packing Size1650×100×100 mm (shaft)
Engine Model1E50F-1
Rated Power2.6 kW
Displacement82 cc
Stroke2-stroke
Drive TypeSide harness, straight shaft
Packing Size1650×100×100 mm (shaft)
Engine Model139-H
Rated Power0.7 kW
Displacement31 cc
Stroke4-stroke
Drive TypeSide harness, straight shaft
Packing Size1650×100×100 mm (shaft)
Rated Power1.4 kW
Displacement47.9 cc
Stroke4-stroke
Drive TypeSide harness, straight shaft
Packing Size1650×100×100 mm (shaft)

Specifications are for reference only and may vary by configuration or destination market. Contact us for the full data sheet.

Side-Mounted Brush Cutter Overview

The side-mounted brush cutter is the classic straight-shaft format: engine at one end, cutting head at the other, balanced across a side harness for sweeping cuts through grass and brush. Eight builds run from the compact CG260 at 0.75 kW to the CG820 at 2.6 kW and 82 cc, with CG431 and CG450 covering four-stroke preferences — one shaft platform across the whole power range.

OEM & ODM Service

WENXIN has manufactured agricultural and power machinery since 2004, with 1,500+ staff across three production bases covering more than 205,000 m². We support OEM and ODM orders including custom logo, colour, labelling and carton design, and export to over 60 countries. Contact our team with your target market and estimated quantity for factory pricing and lead times.

What is a brush cutter used for?

A brush cutter is used for cutting grass, weeds, bushes, and light vegetation in farms, gardens, orchards, roadside areas, and landscaping projects.

What types of brush cutters do you offer?

We offer side-mounted brush cutters, wheeled brush cutters, and backpack brush cutters to meet different working conditions and market needs.

How do I choose the right brush cutter?

You can choose based on engine type, cutting attachment, working area, carrying method, grass condition, and target market requirements.

Can I customize brush cutters with my own brand?

Yes. We support OEM/ODM customization, including logo, color, label, carton packaging, and product configuration based on bulk order requirements.

What certificates are available for brush cutters?

CE certification can be supported for brush cutters. Certificate availability may vary by model and destination market. Additional certification support is available based on customer requirements.

01Material InspectionIncoming raw materials and components are inspected against our quality standards before entering production.
02Precision MachiningCore parts are machined in-house on CNC equipment to keep tolerances and performance consistent batch after batch.
03Assembly LineUnits are assembled on dedicated production lines by trained operators, with in-process checks at each station.
04Testing & Running-inEvery unit goes through functional testing and running-in before it is approved for packing.
05Packing & LoadingProducts are packed to export standards, with OEM logo, color and carton design available on request.

Factory audits and video inspections are welcome. Contact us to arrange a visit or a live production walkthrough.

Want to OEM This Product?

Send us your target market and estimated quantity — we will reply within 24 hours with specifications, packaging options and factory pricing.
